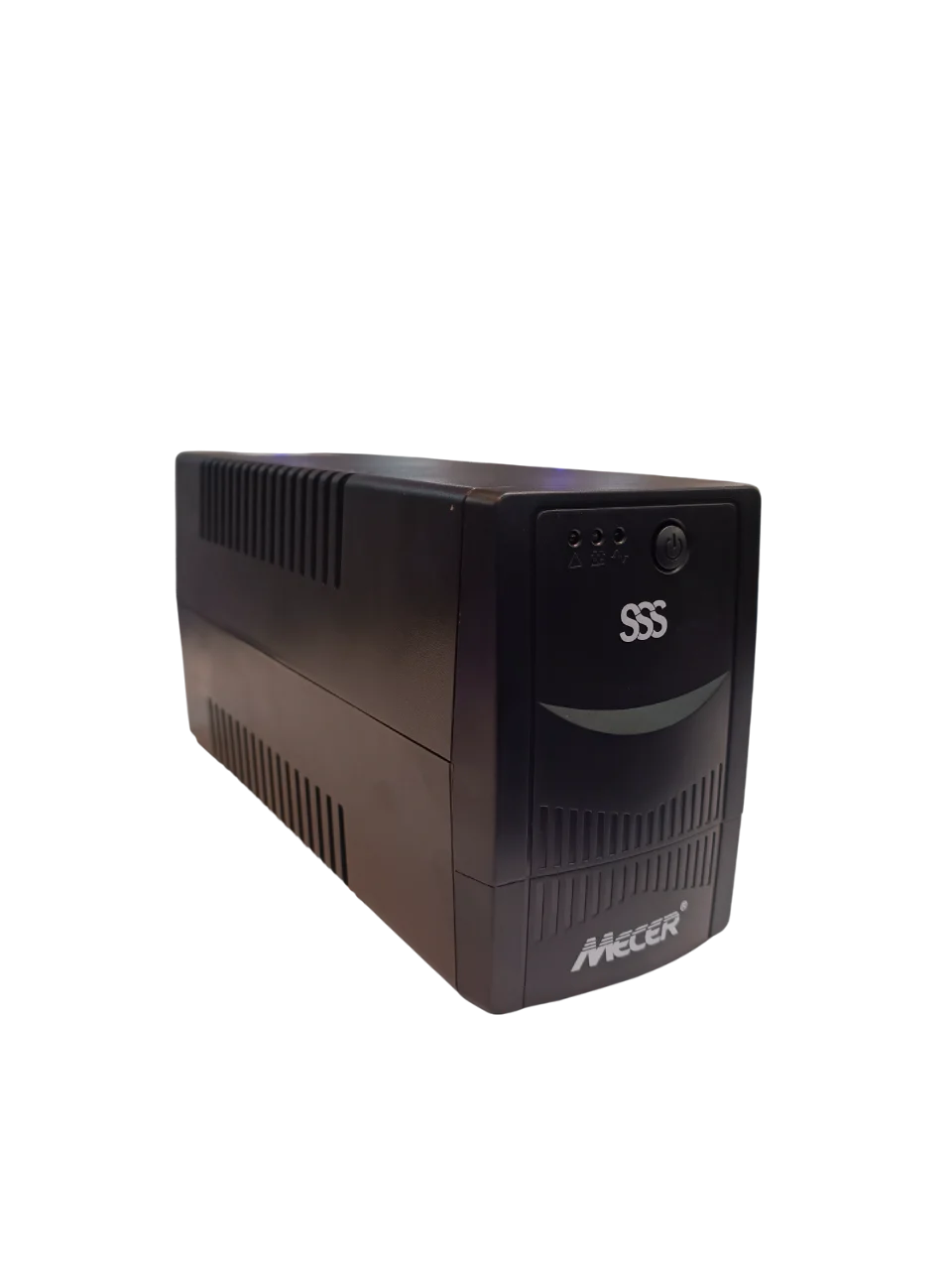

Mecer 850VA / 480W Line-Interactive Tower UPS with AVR & Surge Protection (ME-850-VU)
KShs 13,000
- Simulated sine wave output
- 2–6 ms typical transfer time
- 1 × 12V/9Ah sealed lead-acid battery
- USB communication port
- RJ-11/RJ-45 surge protection
- Cold-start function
- Auto-restart after power recovery
- Overload, overcharge and over-discharge protection
- Compact tower design
Description
Technical Specifications
| Specification Category | Details |
| Model & SKU | Mecer 850VA Line Interactive UPS (ME-850-VU) |
| UPS Topology | Line-Interactive with Boost & Buck AVR |
| Output Power Capacity | 480 Watts / 850 VA |
| Output Waveform | Simulated / Modified Sine Wave (Battery Mode) |
| Nominal Output Voltage | 220V / 230V / 240V AC (±10%) |
| Input Voltage Range | 162 – 290V AC (50/60 Hz Auto-Sensing) |
| Transfer Time | 2 – 6 ms typical (10 ms maximum) |
| Battery Type | 1 × 12V 7Ah (or 12V 9Ah depending on batch) Sealed Lead-Acid |
| Recharge Time | 4 – 6 hours to 90% capacity |
| Protection Features | Overload, Overcharge, Discharge, Short Circuit, Surge & RJ-11/RJ-45 Data Line Protection |
| Communication & Ports |
• 1 × USB Port (PC Monitoring) • 2 × RJ-11/RJ-45 Surge Ports • Standard Output Sockets (IEC or South African 3-pin depending on regional variant) |
| Indicators & Alarms | LCD Display / LED Indicators with multi-pattern Audible Alarms (Battery mode, Low battery, Overload, Fault) |
