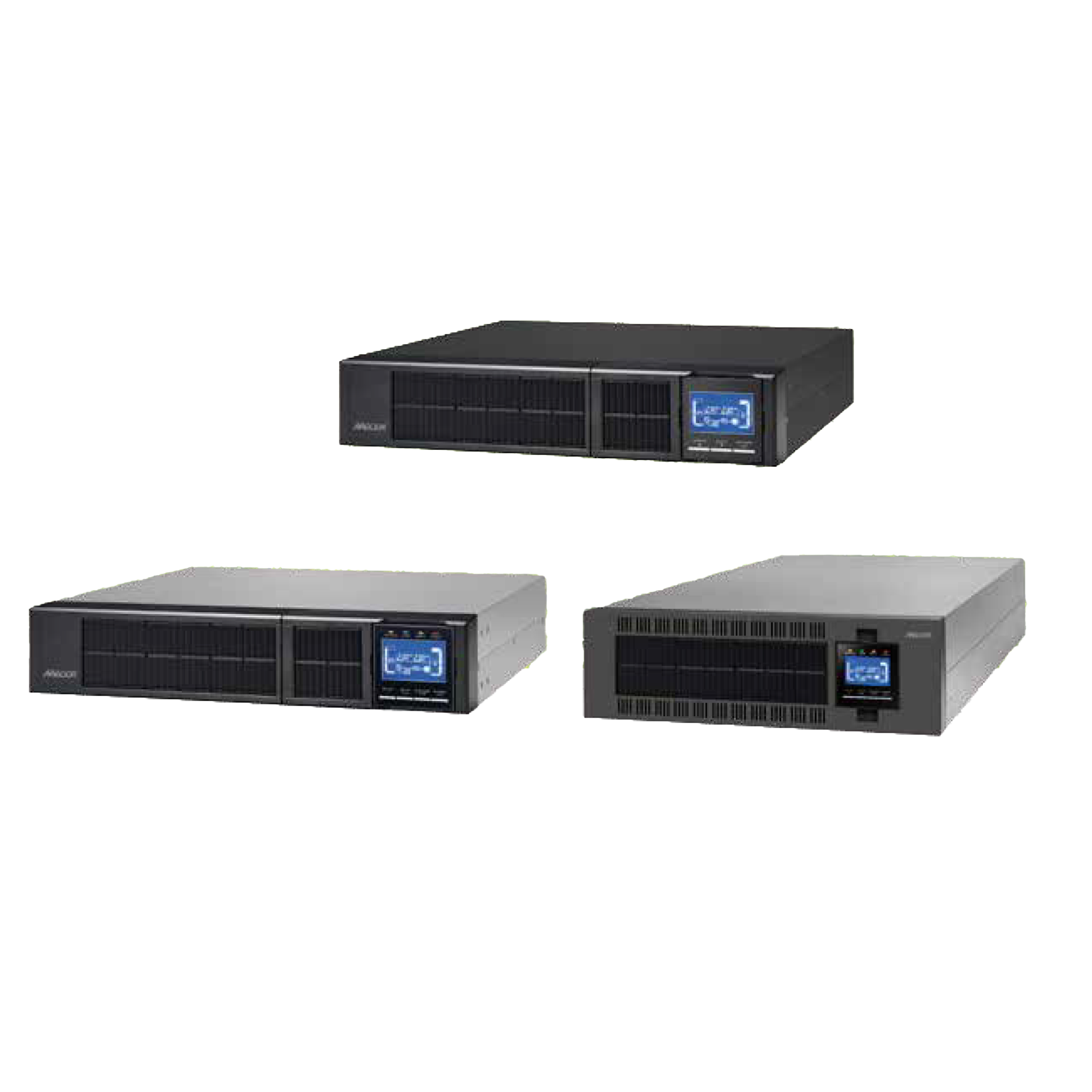

Mecer 1000VA / 800W On-Line 2U Rackmount UPS with Pure Sine Wave & SmartSlot (ME-1000-WPRU)
KShs 57,000
- True online double-conversion technology
- Pure sine wave output
- Zero transfer time from AC to battery
- 2U rackmount design
- Wide input voltage range: 110–300VAC
- Output voltage: 230V ±1%
- Input power factor
- ECO energy-saving mode
- Hot-swappable batteries
- Generator compatible
- LCD display and monitoring
- USB and RS232 communication ports
- SNMP slot for remote monitoring
Description
Technical Specifications
| Specification Category | Details |
| Model & SKU | Mecer 1000VA Rackmount On-Line UPS (ME-1000-WPRU) |
| Form Factor | 2U Rackmount / Convertible Tower |
| UPS Topology | True Double-Conversion On-Line |
| Output Power Capacity | 800 Watts / 1000 VA (Power Factor 0.8) |
| Output Waveform | Pure Sine Wave |
| Nominal Output Voltage | 208/220/230/240V AC (±1%) |
| Input Voltage Range | 110 – 300V AC (Load-dependent) at 50/60 Hz Auto-Sensing |
| Transfer Time | 0 ms (Zero transfer time: Line to Battery) |
| Battery Type | 2 × 12V 9Ah Sealed Lead-Acid (VRLA) |
| Recharge Time | 4 hours to 90% capacity |
| Protection Features | Full protection against Overload, Short Circuit, Over-temperature, and Voltage Fluctuations |
| Communication & Ports |
• 1 × USB Port • 1 × RS-232 Serial Port • 1 × Intelligent SmartSlot (Optional SNMP/Web Card) • 1 × EPO (Emergency Power Off) Port |
| Indicators & Alarms | Operational LCD Status Panel with comprehensive system diagnostics and Audible Alarms |
