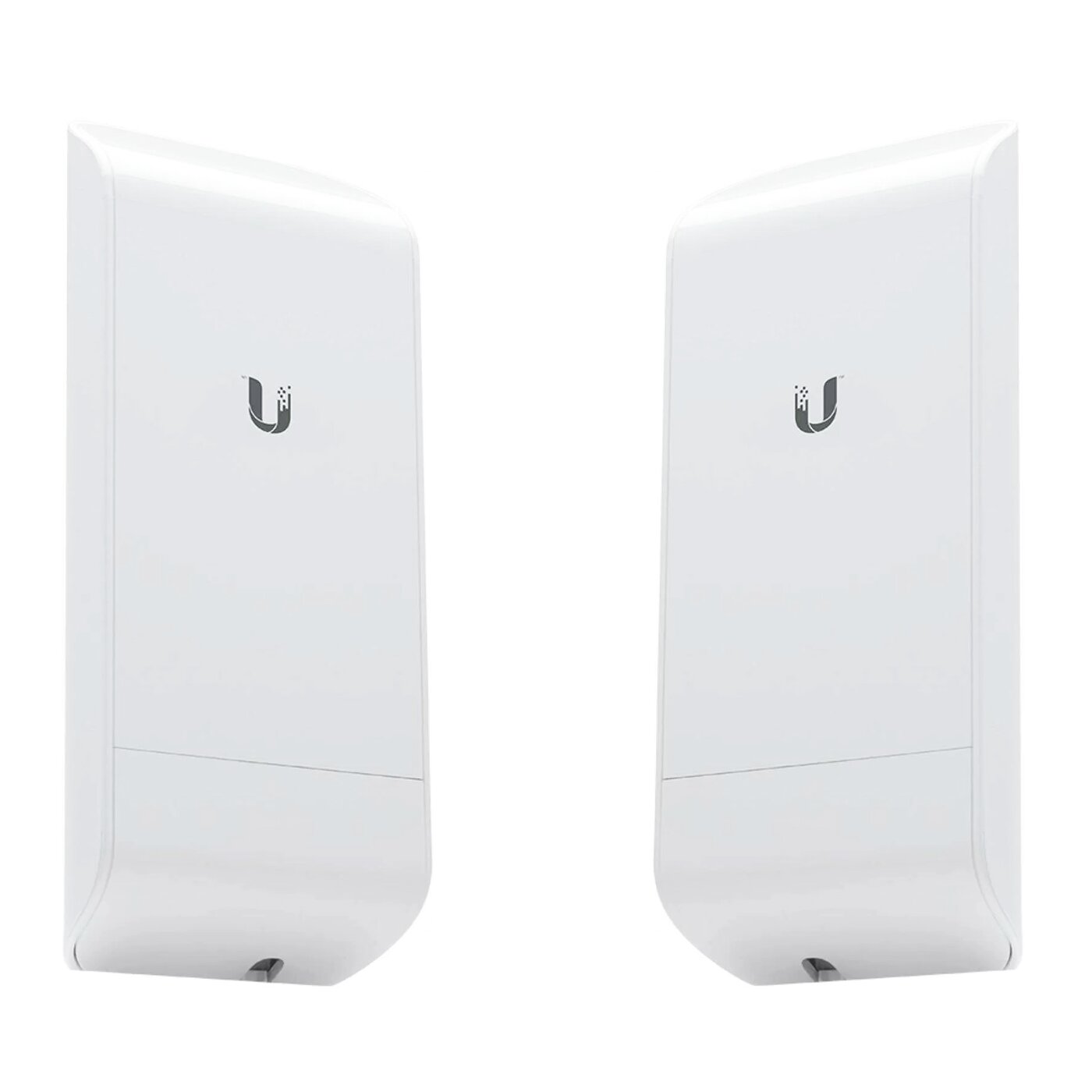

Ubiquiti airMAX NanoStation Loco M5 (LOCOM5) 5GHz Outdoor
KShs 13,000
- 5 GHz Wireless
- 802.11a/n
- 2 × 2 MIMO
- airMAX Technology
- Up to 150+ Mbps Throughput
- 13 dBi Integrated Antenna
- Dual-Linear Polarization
- 1 × 10/100 Ethernet Port
- Passive PoE Powered
- 24V, 0.5A PoE Adapter
- 32MB SDRAM
- 8MB Flash Storage
Description
Technical Specifications
| Feature | Specification |
| Model Code | LOCOM5 |
| Operating Frequency | 5 GHz (5170–5875 MHz) |
| Processor & Memory | Atheros MIPS 24KC, 400 MHz | 32 MB SDRAM, 8 MB Flash |

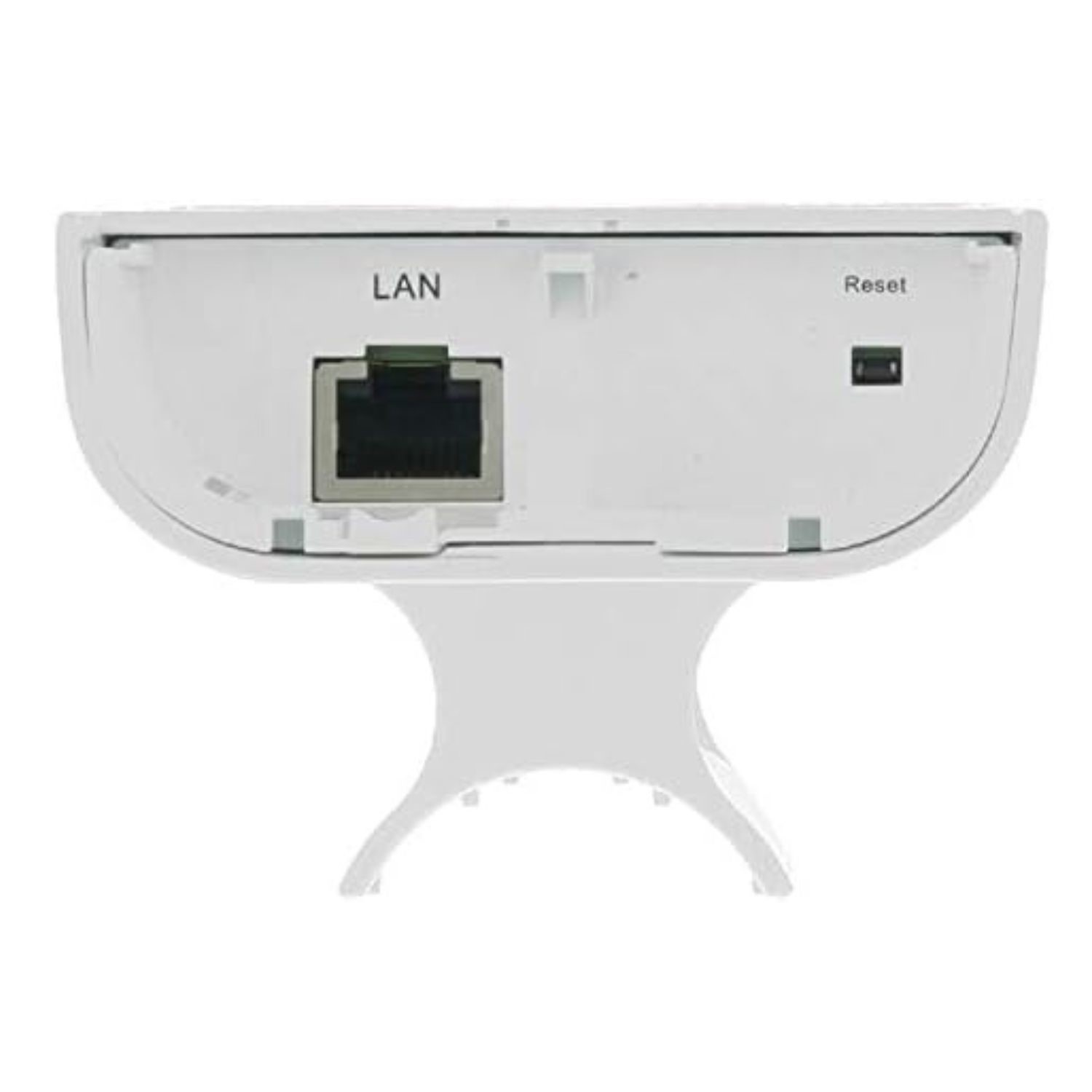

| Networking Interface | 1x 10/100 Mbps Ethernet Port |
| Antenna Gain | 13 dBi Dual-Polarization Panel Antenna |
| Cross-Pol Isolation | 20 dB Minimum |
| Beamwidth | 45° (Horizontal) / 45° (Vertical) / 45° (Elevation) |
| Max TX Power | 23 dBm |
| Power Method | 24V, 0.5A Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max Power Consumption | 5.5 W |
| Dimensions & Weight | 161 x 31 x 80 mm (6.3 x 1.2 x 3.1″) | 180 g (6.35 oz) |
| Mounting | Pole Mounting Kit Included |
